How to reload your ECO Spool

    ECO refills

    Which refill do you have?

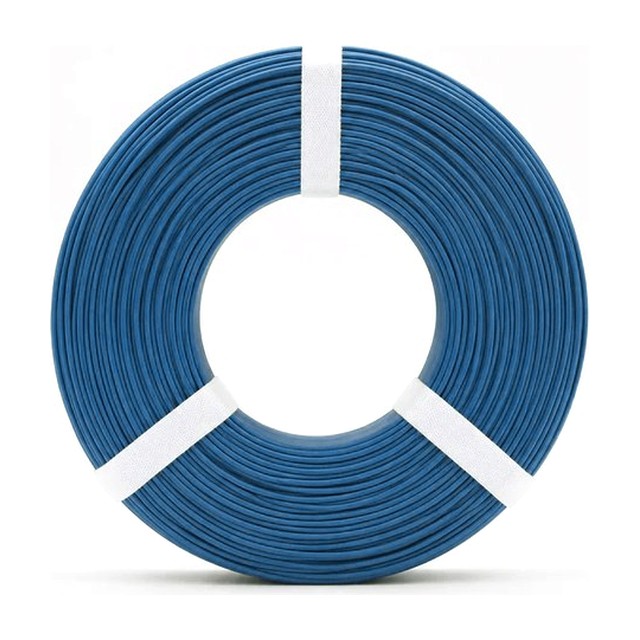

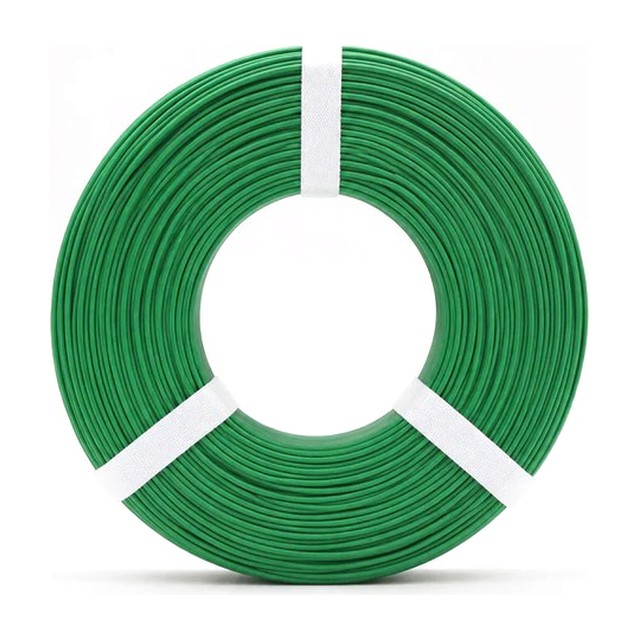

    Our refills grew from 58mm to 60mm, the Bambu Lab standard. Answer two questions and you'll have your answer and the steps to load it.

    1

    Identify your refill

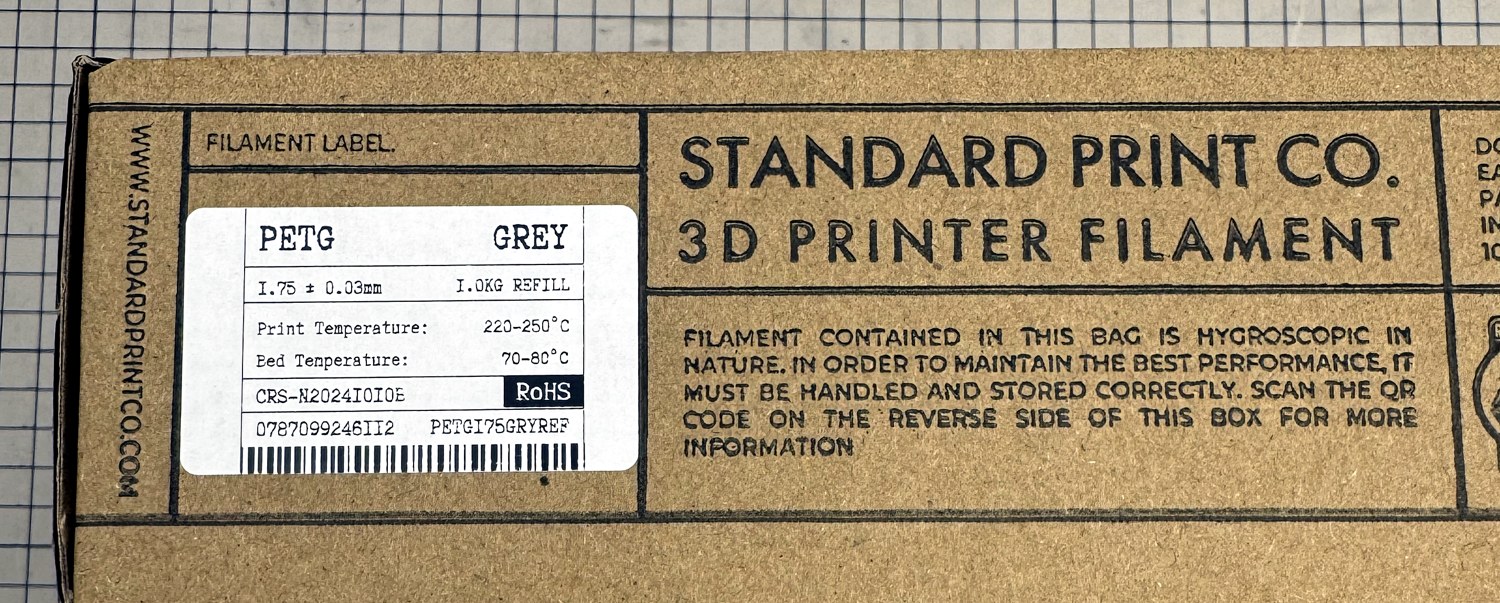

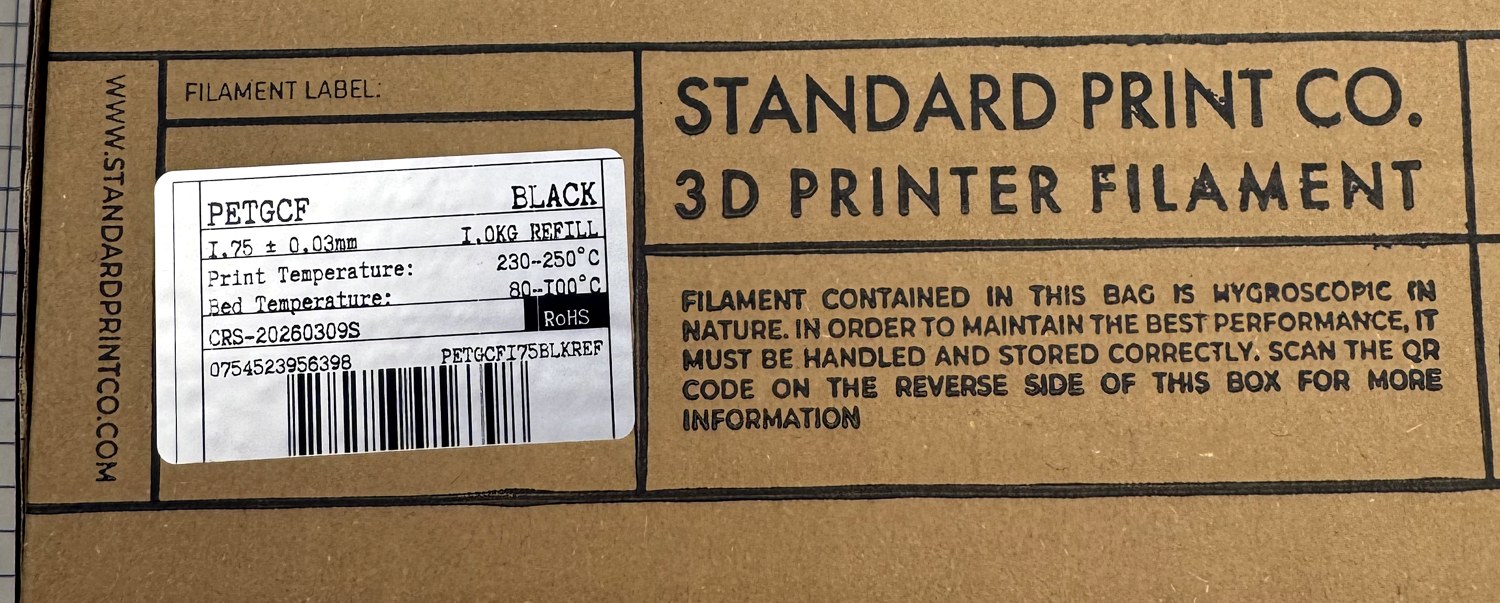

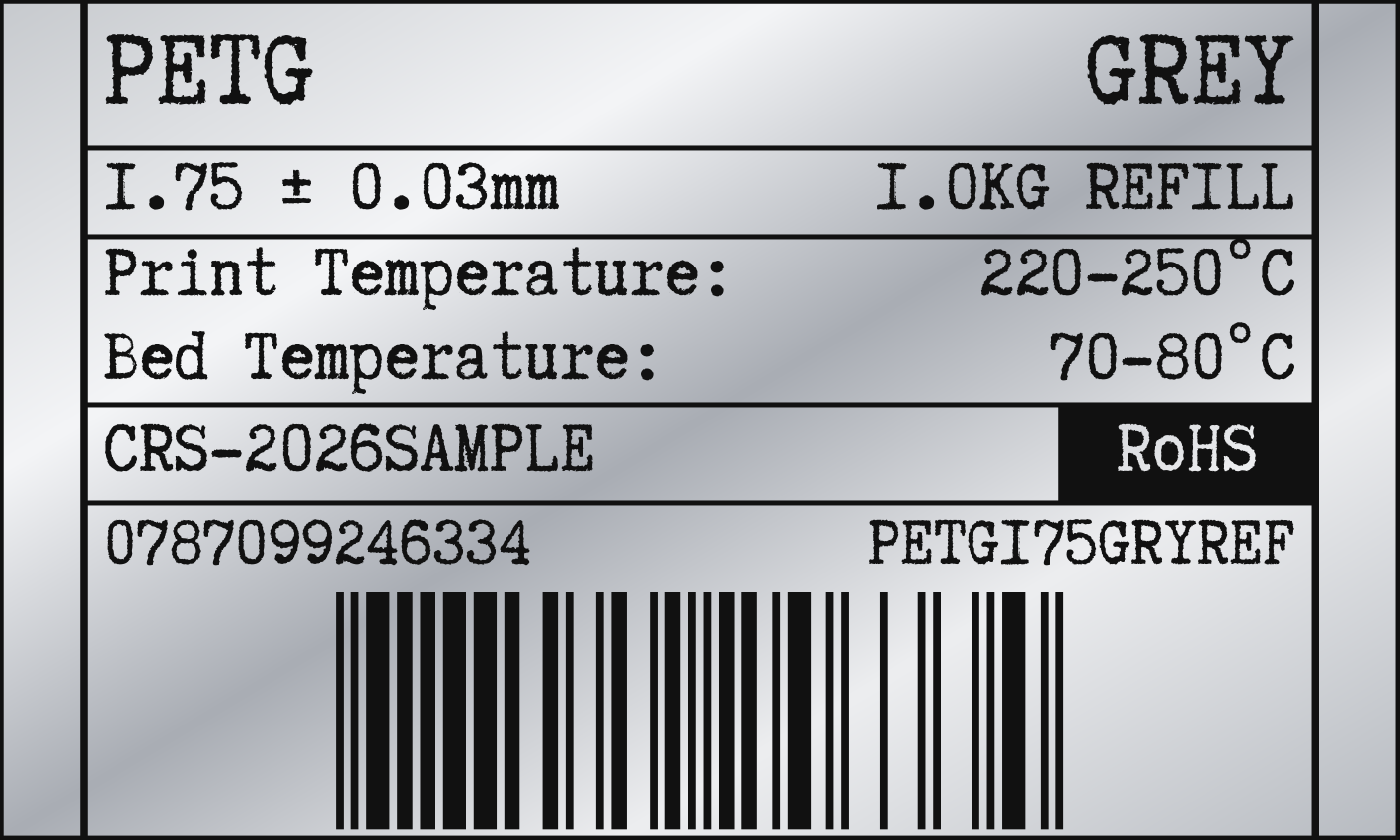

    Pick one refill below. Go by the label on the box.

    2

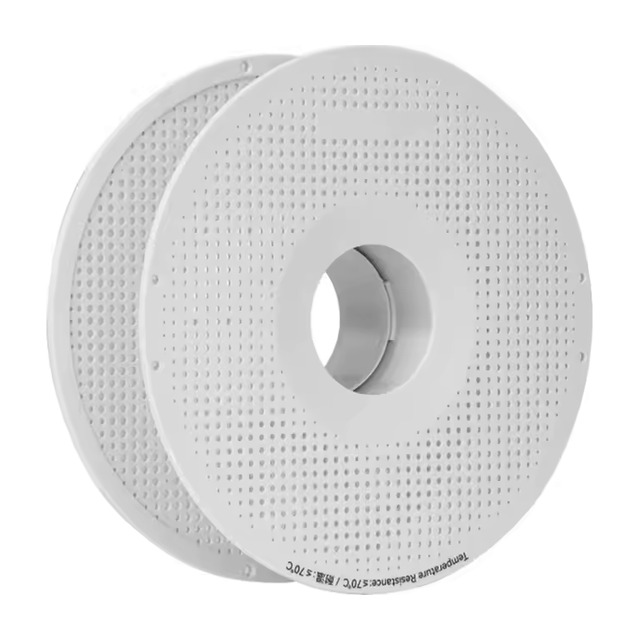

    Identify your spool

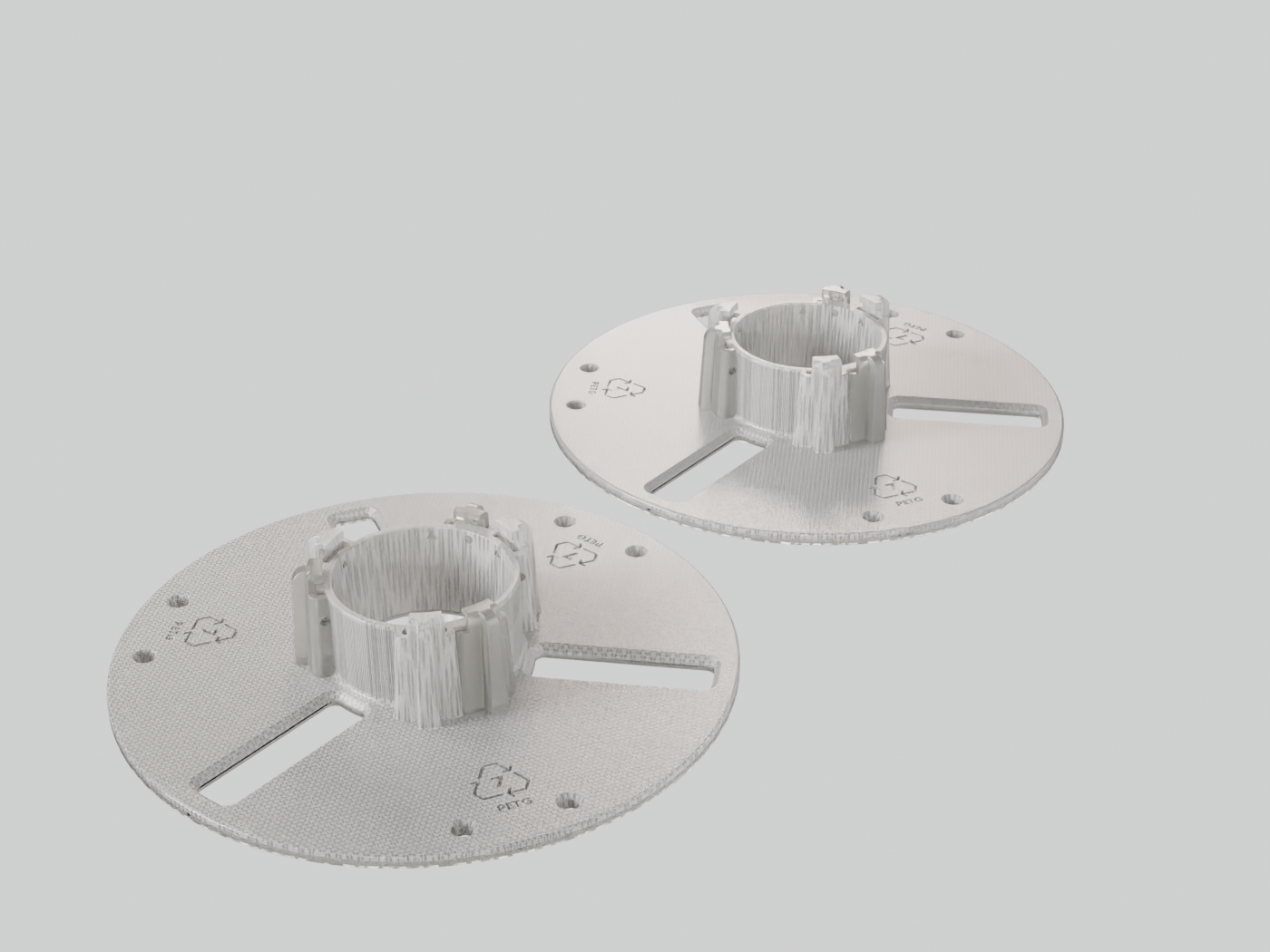

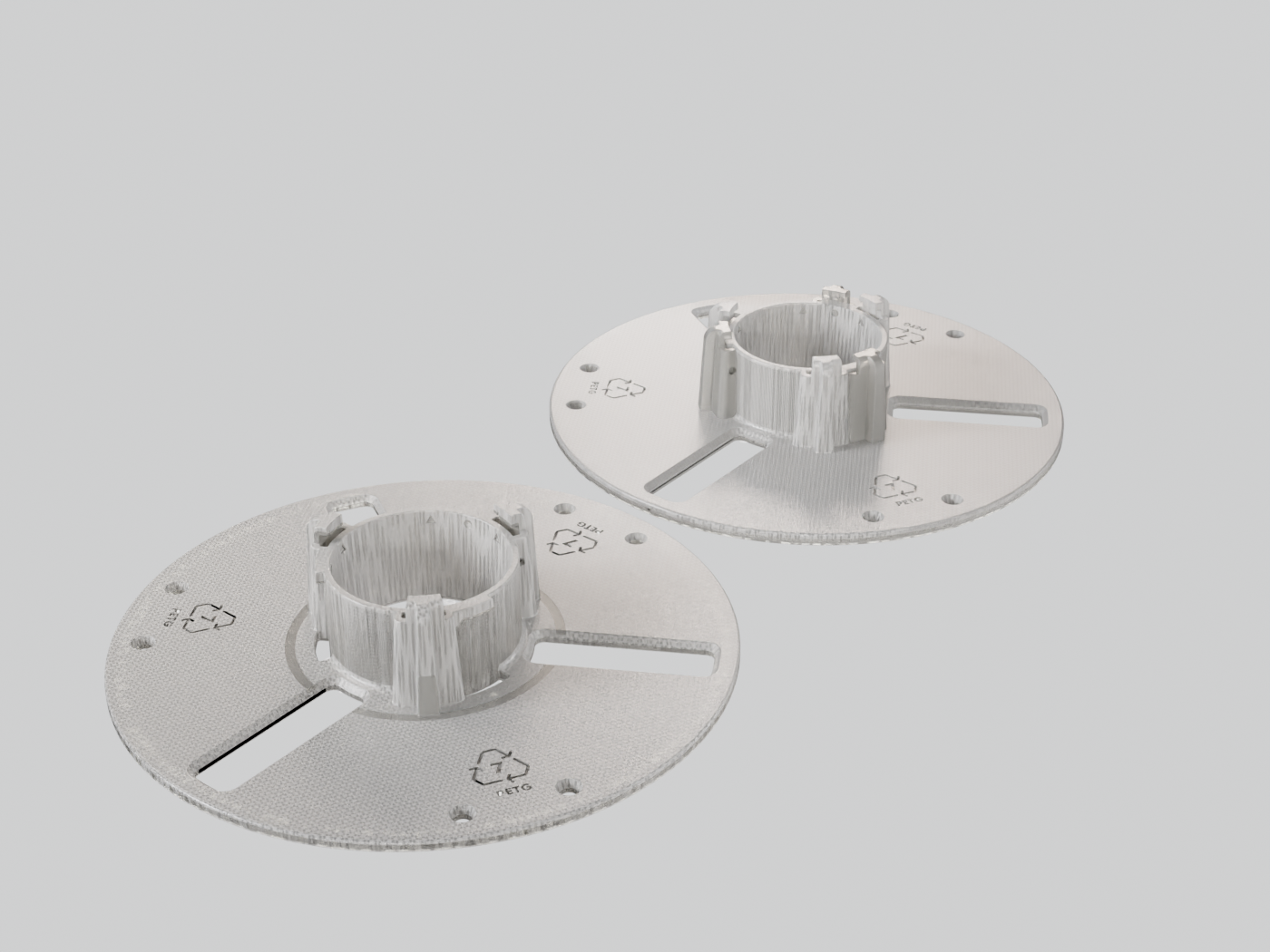

    Pick one spool below. Open it and look at the inner face of each half.

    Can’t tell? Compare the spool halves.

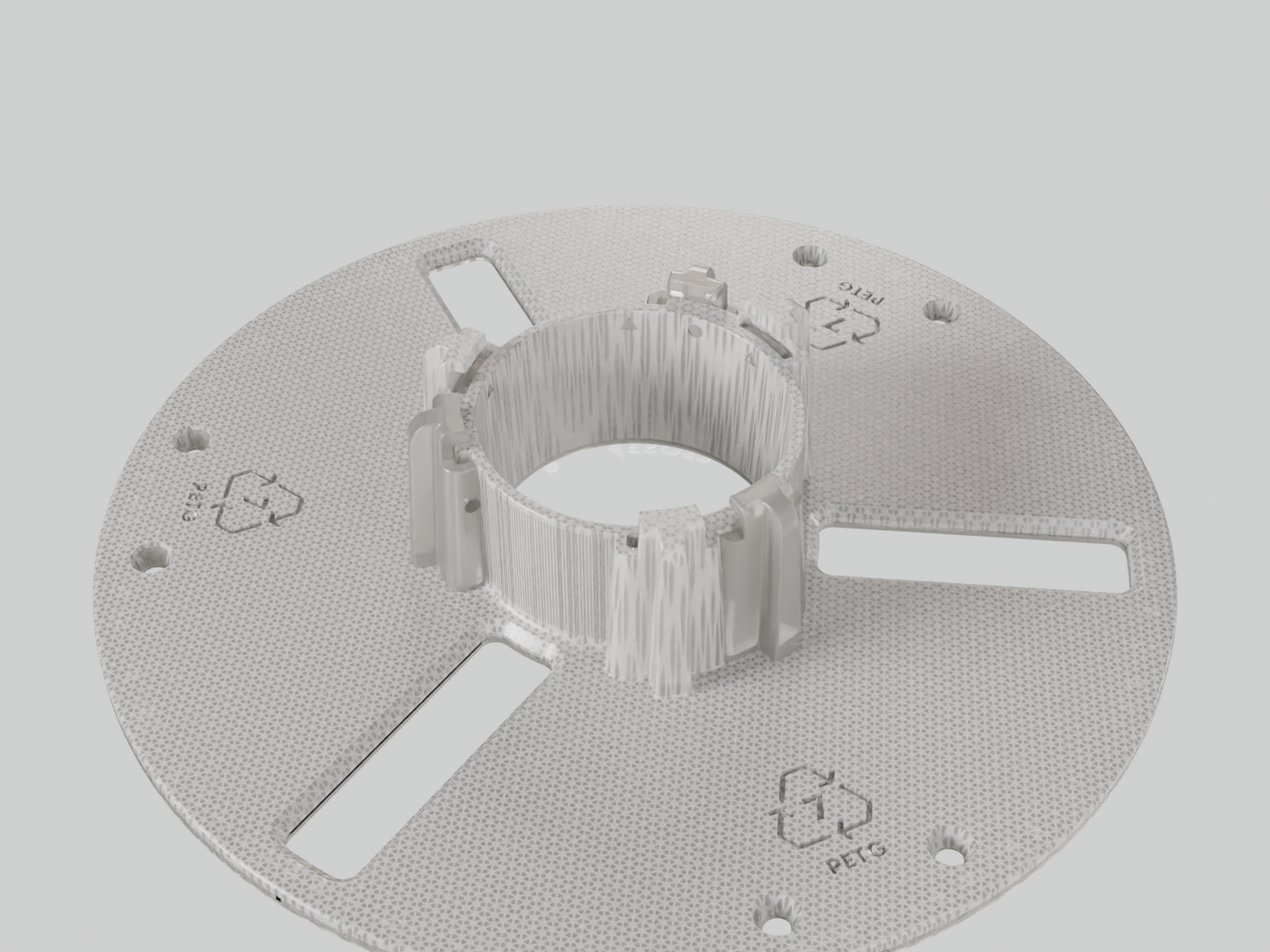

    A-SIDE

    No groove.

    Flat inner face. Two A-sides give a 58.5mm socket.

    Flat inner face of an ECO Spool A-side
    B-SIDE

    Ring groove.

    A groove around the hub. A refill's cardboard ring sits snugly inside it.

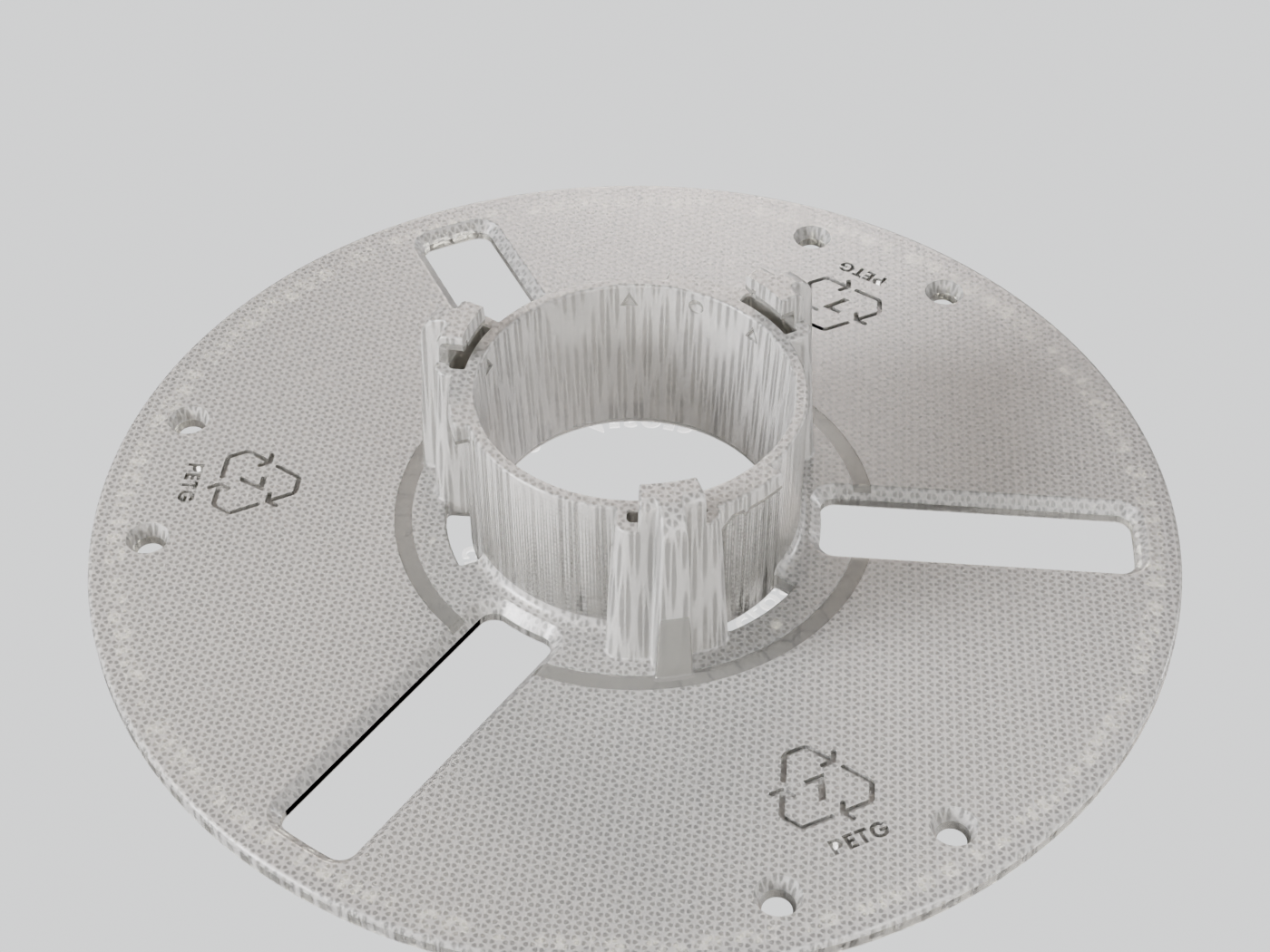

    Inner face of the ECO Spool 2.1 B-side, showing the ring groove
    3

    Does it fit?

    Optional (sold separately)Load a DRY090 Canister

    The bore through the middle of the spool takes a DRY090 Canister, held at each end by a clip. It is sized for the canister and nothing else — never pour loose desiccant, sachets or refill granules in there. They migrate into the coil and jam the feed.

    A loaded ECO Spool, both halves closed over a refill
    01Start with the spool loaded and closed.
    Desiccant clip held above the hub, with the six tab holes it drops into ringed
    02Drop a clip onto the hub. Its tabs go into the six holes.
    Desiccant clip turned clockwise in the hub to lock it
    03Turn it clockwise to lock.
    The spool turned over, locked clip now underneath
    04Turn the spool over.
    DRY090 Canister sliding into the centre bore of the ECO Spool
    05The DRY090 slides into the bore.
    Second desiccant clip fitted and locked, holding the DRY090 captive
    06Second clip in and locked. Held at both ends.
    DRY090 Canisters

    Can’t tell what you have?

    Send us a photo of the box and the open spool and we’ll tell you which is which. If you need the taller 2.1 B-side, it’s free.

    Send us a photo

    On an older ECO Spool 1? Use the ECO Spool 1 guide.
